Brakes

TURBOREX is the only brake on the market incorporating a multi-disc system and a double fan ventilation.

This patented development reduces operating temperatures and guarantees 42,000 working hours under extreme conditions – 300 mt/min, 24 hours (5 year maintenance free).

Because of the lower temperatures, the web tension control is improved at any line speed and pad wear and pollution are drastically reduced. Five models are available.

REVOLUTION – Energy recovery hybrid brakes

A patented system to improve every phase of the production line including downtimes during splicing.

FEATURES:

  • No paper tearing – Revolution accelerates the roll on its axis, not via the paper web thereby helping overcome initial inertia
  • Top performance – faster splicing speeds; no need to sacrifice linear metres, thus avoiding breakdowns and downtime
  • Energy saving – the motor transforms the thermal energy produced by the brake into electrical energy – up to 2kWh per roll stand can be generated
  • Sustainable – hybrid regulation automatically adjusts to the application reducing component wear and powder pollution; fewer spare parts required
  • High level – every size and weight of rolls are automatically tensioned
Renova Revolution - Energy Recovery Hybrid Brake

TURBOREX SELEMATIC Brakes

A revolutionary brake system that automatically finds and applies the necessary torque to multiple discs continuously throughout the production cycle. The need for manual adjustments is eliminated ensuring maximum sensitivity. Four models are available.

FEATURES:

  • Torque range extended to 1:500
  • Provides precision and accuracy in tension control
  • Emergency stop always available

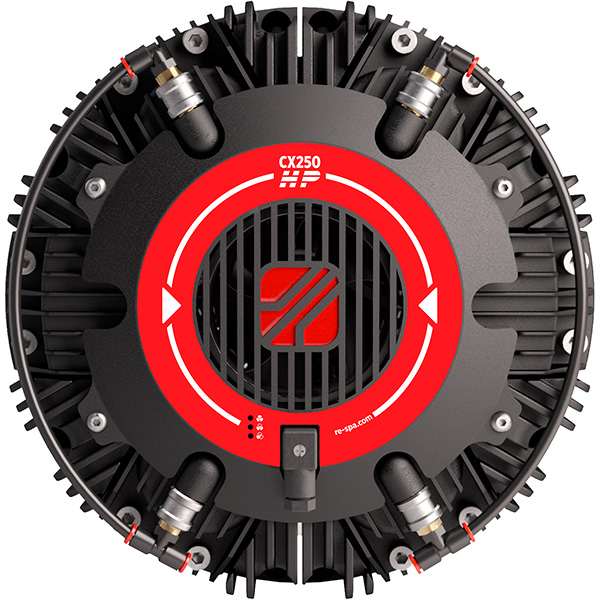

COMBIREX CX250 Brakes

A mono-disc, multi-caliper, air-cooled brake achieving a maximum torque of 960 Nm and a power dissipation of 3kW. The CX model incorporates a 250mm disc and is available with up to 6 calipers.

FEATURES:

  • Torque ratio for each caliper: 0.15-0.16 daNm
  • Air pressure: 0.2-6 bar
  • Thermal power: 3kw at 100 RPM
  • Max RPM: 2500

POWDEREX Magnetic powder brakes

Designed to work in a continuous scroll when applying tension to the most variable converting applications. Ideal for unwinders, due to the high quality and durability of the friction material, the brake has a wide range that offers solutions to all drive problems requiring torque between 12 Nm and 250 Nm.

FEATURES:

  • High sensitivity
  • Low residual torque
  • Finely adjustable torque range with a card supplied by Renova

SIMPLEX Caliper Brakes

A wide range offered including manual, pneumatic and hydraulic brakes.

Also available in the failsafe version (spring applied).

FEATURES:

  • Braking force from 150 to 40,000 N
  • Linings wear compensation system
  • Inclined mounting kit
  • Pads self-alignment system

OPTIONS INCLUDE:

  • Linings wear indicator
  • On/off indicator
  • SG iron discs available
  • Max RPM: 2500
Download the brochure

Also available to download:

Revolution brochure
Combirex technical brochure
Turborex technical brochure
